继承

继承和派生的含义

如果要提高程序开发的效率，需要对已有的代码进行重用。在面向过程的语言中，重用的单位是函数（过程）。而在面向对象的语言中，重用的单位是类。

重用一个已有的类来创建新的类，一种方法是组合，它体现部分和整体的关系。

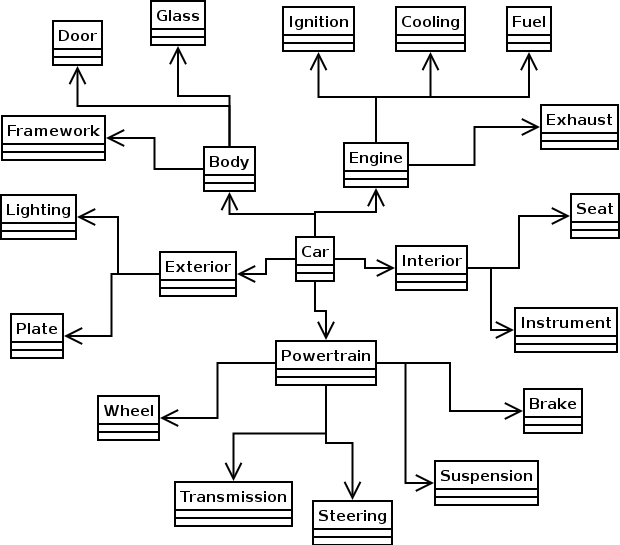

比如说要构造一辆汽车，汽车是一种复杂的对象，它由很多小的部分组成。

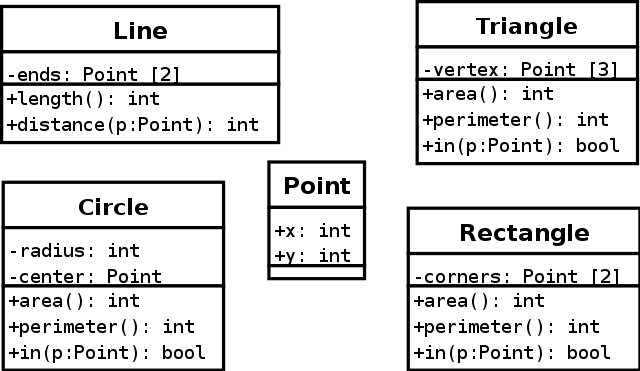

再举一个更具体简单的例子：构造一个平面图形系统，需要用到点、线段、圆、矩形、三角形等。在线段、圆、矩形、三角形等图形中，都需要表示点这个类型，比如线段需要有两个端点来表示，我们可以通过添加点类型的成员，把它们组合起来。

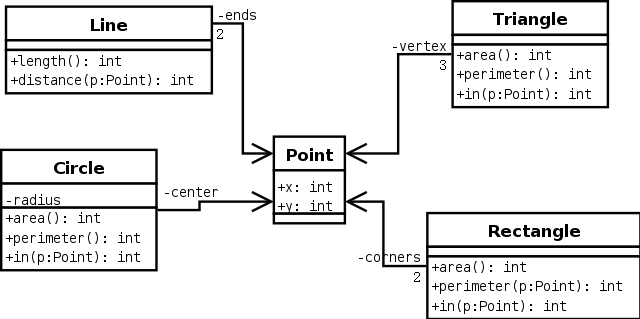

或者可以把它们之间的关系更明确的表示为：

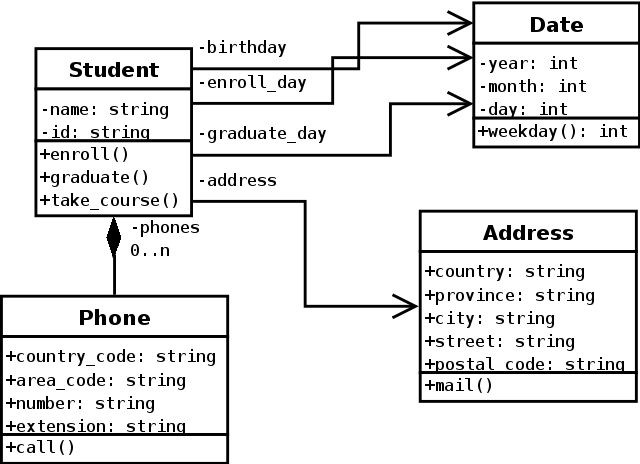

再比如说一个学生类。

继承（派生）是类的重用的另一种方法，它体现类之间的is a的关系（一般和特殊的关系）。如果A is a B，即A是某一种特殊的B，则我们说A类是从B类继承（inherit）的，或者说B派生（derive）出A。比如说交通工具：

如果A类从B类继承，或B派生出A，则我们称A类是B类的派生类（Derived Class），B类是A类的基类（Base Class）；或者说A类是B类的子类（Child Class），B类是A类的父类（Parent Class）。

逻辑上派生类和基类是一种is a的关系；
派生类是在基类的基础上添加新的成员进行扩充而得到，它拥有基类的所有成员（所有属性和方法）；
在用到基类对象的地方，可以用派生类对象来代替。

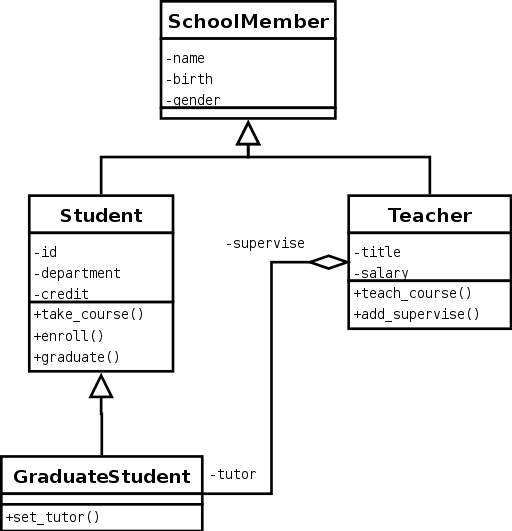

比如说，学生Student是一类学校的成员SchoolMember，老师Teacher也是一类学校的成员SchoolMember，研究生GraduateStudent是一类学生Student。

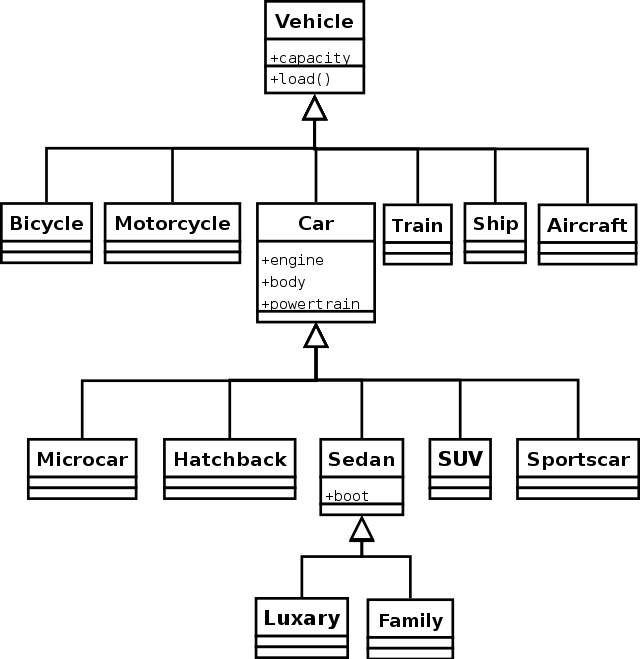

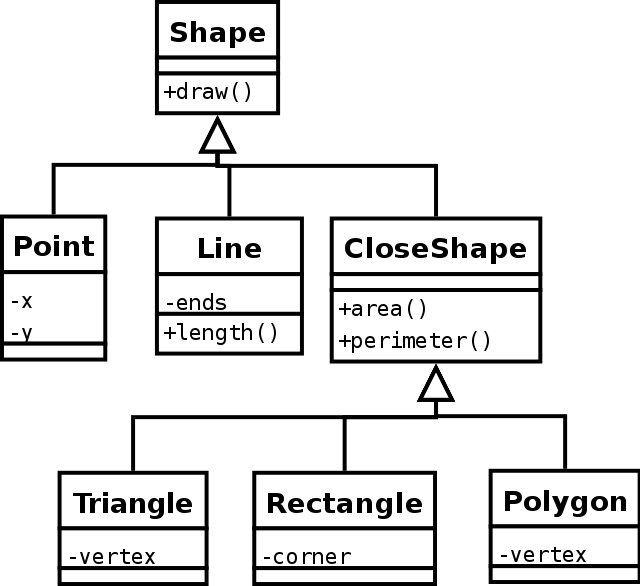

还有各种图形之间的关系：

不恰当使用继承的例子：

Rectangle继承Point？

Ellipse继承Circle还是Circle继承Ellipse？

派生类的定义

我们用C++语言来描述学生老师之间的关系：

struct Date {
    int year;
    int month;
    int day;
};

struct Course {
    string name;
    int credit;
};

class SchoolMember {
private:
    string name;
    Date birth;
    bool gender;
};

//Student类继承了SchoolMember类，public指明继承方式是公有继承
class Student : public SchoolMember
{
private:
    string id;
    int department;
    int credit;
    Date enroll_day;
    Date graduate_day;
};

class Teacher; //前置声明

//GraduateStudent类继承了Student类
class GraduateStudent : public Student {
private:
    Teacher *tutor;
};

//Teacher类继承了SchoolMember类
class Teacher : public SchoolMember
{
private:
    int title;
    int salary;
    GraduateStudent *supervise[8];
    int num_supervise;
};

派生类对象的定义：

int main() {
    SchoolMember p;
    Student s;
    Teacher t;
    GraduateStudent g;
}

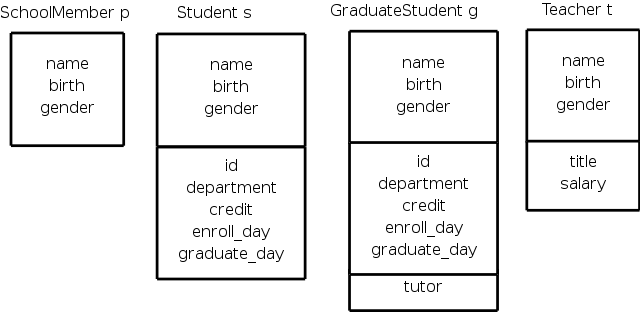

对象的内存布局：

加上成员函数的实现：

struct Date {
    int year;
    int month;
    int day;
};

struct Course {
    string name;
    int credit;
};

class SchoolMember {
private:
    string name;
    Date birth;
    bool gender;
public:
    Date get_bith() {
        return birth;
    }
    string get_name() {
        return name;
    }
    bool get_gender() {
        return gender;
    }
};

//Student类继承了SchoolMember类，public指明继承方式是公有继承
class Student : public SchoolMember
{
private:
    string id;
    int department;
    int credit;
    Date enroll_day;
    Date graduate_day;
public:
    string get_id() {
        return id;
    }
    int get_department() {
        return department;
    }
    int get_credit() {
        return credit();
    }
    Date get_enroll_day() {
        return enroll_day;
    }
    Date get_graduate_day() {
        return graduate_day;
    }
    void enroll(Date day) {
        enroll_day = day;
    }
    void graduate(Date day) {
        graduate_day = day;
    }
};
//GraduateStudent类继承了Student类
class GraduateStudent : public Student {
private:
    Teacher *tutor;
public:
    Teacher *get_tutor() {
        return tutor;
    }
    void set_tutor(Teacher *t) {
        if(tutor == t) return;
        tutor = t;
        t->add_supervise(this);
    }
};

//Teacher类继承了SchoolMember类
class Teacher : public SchoolMember
{
private:
    int title;
    int salary;
    GraduateStudent *supervise[8];
    int num_supervise;
public:
    void add_supervise(GraduateStudent *g) {
        for(int i = 0; i < num_supervise; i++)
            if(supervise[i] == g)
                return;
        supervise[num_supervise++] = g;
        g->set_tutor(this);
    }
};

练习：将各种图形类用C++描述出来。

派生类的构造和析构

在创建对象时，我们需要对对象进行初始化。普通类型的对象的初始化是由构造函数完成的，对于派生类对象也是相同的。

创建派生类对象时，派生类的构造函数会被自动调用。

struct Date {
    int year, month, day;
    Date(int y, int m, int d) {
        year = y;
        month = m;
        day = d;
    }
};

class SchoolMember {
private:
    string name;
    Date birth
    bool gender;
};

class Student : public SchoolMember {
private:
    string id;
    int department;
    int credit;
    Date enroll_day;
    Date graduate_day;
public:
    Student(string n, Date b, bool g, string i, int d)
        : enroll_day(0,0,0), graduate_day(0,0,0) {
        id = i;
        department = d;
        credit = 0;
    }
};
int main() {
    Student d("Jack", Date(1985, 9, 13), true, "05011101", 11);
}

这个例子里面，派生类Student扩展的部分已经初始化，但是基类的部分没有初始化。要初始化继承下来的基类部分的成员，可以在基类中定义构造函数。

struct Date {
    int year, month, day;
    Date(int y, int m, int d) {
        year = y;
        month = m;
        day = d;
    }
};

class SchoolMember {
private:
    string name;
    Date birth
    bool gender;
public:
    SchoolMember(string n, Date b, bool g) : birth(b) {
        name = n;
        gender = g;
    }
};

class Student : public SchoolMember {
private:
    string id;
    int department;
    int credit;
    Date enroll_day;
    Date graduate_day;
public:
    Student(string n, Date b, bool g, string i, int d)
        : enroll_day(0,0,0), graduate_day(0,0,0), SchoolMember(n, b, g) {
        id = i;
        department = d;
        credit = 0;
    }
};
int main() {
    Student d("Jack", Date(1985, 9, 13), true, "05011101", 11);
}

如果基类中有构造函数，派生类没有定义构造函数，或者有构造函数但是没有显示调用基类构造函数，那么基类中的默认构造函数会被自动调用。

class SchoolMember {
    string name;
    Date birth;
    bool gender;
public:
    SchoolMember(string n = "", Date b = Date(0,0,0), bool g = false)
        : birth(b) {
        name = n;
        gender = g;
    }
};
class Student : public SchoolMember{
    string id;
    int department;
    int credit;
    Date enroll_day;
    Date graduate_day;
};
int main() {
    Student s;
}

在一个多层的继承结构里面，创建一个派生类对象时，基类、基类的基类、基类的基类的基类等的构造函数都会被调用。

class SchoolMember {
private:
    string name;
    Date birth
    bool gender;
public:
    SchoolMember(string n, Date b, bool g) : birth(b) {
        name = n;
        gender = g;
    }
};

class Student : public SchoolMember {
private:
    string id;
    int department;
    int credit;
    Date enroll_day;
    Date graduate_day;
public:
    Student(string n, Date b, bool g, string i, int d)
        : enroll_day(0,0,0), graduate_day(0,0,0), SchoolMember(n, b, g) {
        id = i;
        department = d;
        credit = 0;
    }
};
class GraduateStudent: public Student {
    Teacher *tutor;
public:
    GraduateStudent(string n, Date b, bool g, string i, int d, Teacher *t)
        :Student(n, b, g, i, d) {
        tutor = t;
    }
};
int main() {
    Teacher teacher;
    GraduateStudent d("Rose", Date(1985, 9, 13), false, "05011101", 11, &teacher);
}

类的完整实现实例：

class Date {
public:
    int year, month, day;
    Date(int y, int m, int d)
        : year(y), month(m), day(d) {
    }
};
struct Course{
    string name;
    int credit;
};

class SchoolMember {
    string name;
    Date birth;
    bool gender;
public:
    SchoolMember(string n, Date b, bool g)
        : name(n), birth(b), gender(g) {
    }
};
class GraduateStudent;
class Teacher : public SchoolMember {
    int salary;
    int title;
    int num_supervise;
    GraduateStudent *supervise[8];
public:
    Teacher(string n, Date b, bool g, int t, int s)
        : SchoolMember(n, b, g), salary(s), title(t) {
    }
    void add_supervise(GraduateStudent *g) {
        for(int i = 0; i < num_supervise; i++)
            if(supervise[i] == g)
                return;
        supervise[num_supervise++] = g;
        g->set_tutor(this);
    }
};
class Student: public SchoolMember {
    string id;
    int department;
    int credit;
    Date enroll_day;
    Date graduate_day;
public:
    SchoolMember(string n, Date b, bool g, string i, int d)
        : SchoolMember(n, b, g), id(i), department(d), credit(0),
        enroll_day(0,0,0), graduate_day(0,0,0) {
    }
    void take_course(Course *c) {
        credit += c->credit;
    }
    void enroll(Date day) {
        enroll_day = day;
    }
    void graduate(Date day) {
        graduate_day = day;
    }
};
class GraduateStudent: public Student {
    Teacher *tutor;
public:
    GraduateStudent(string n, Date b, bool g, string i, int d, Teacher *t)
        : Student(n, b, g, i, d), tutor(t) {
        t->add_supervise(this);
    }
    void set_tutor(Teacher *t) {
        if(tutor == t) return;
        tutor = t;
        tutor->add_supervise(this);
    }
};

派生类对象被销毁时，基类的析构函数会被自动调用。如果派生类和基类都有析构函数，那么他们都会被调用。

class SchoolMember {
public:
    SchoolMember() {
        cout << "construct SchoolMember" << endl;
    }
    ~SchoolMember() {
        cout <<"destruct SchoolMember" <<endl;
    }
};
class Student : public SchoolMember{
public:
    Student() {
        cout << "construct Student" << endl;
    }
    ~Student() {
        cout << "destruct Student" << endl;
    }
};
int main() {
    Student s;
    SchoolMember p;
}

派生类析构函数只负责派生类增加部分的分配资源的析构。

int MAX_SUPERVISE[] = {0, 0, 4, 10};

class Teacher : public SchoolMember {
    int salary;
    int title;
    int num_supervise;
    int capacity_supervise;
    GraduateStudent **supervise;
public:
    Teacher(string n, Date b, bool g, int t, int s)
        : SchoolMember(n, b, g), salary(s), title(t) {
    }
    Teacher(string n, Date b, bool g, int t, int s)
        :SchoolMember(n,b,g), salary(s), title(t) {
        capacity_supervise = MAX_SUPERVISE[t];
        supervise = new GraduateStudent*[capacity_supervise]
    }
    ~Teacher(){
        delete[] supervise;
    }
    void add_supervise(GraduateStudent *g) {
        for(int i = 0; i < num_supervise; i++)
            if(supervise[i] == g)
                return;
        if(num_supervise >= capacity_supervise)
            return;
        supervise[num_supervise++] = g;
        g->set_tutor(this);
    }
};
int main() {
    Teacher t("czk", Date(1979,8,27), true, 1, 1500);
}

类型兼容性

在需要使用基类对象的情况下，可以用派生类对象来代替。分为三种情况：

派生类对象取代基类对象，派生类对象被切割
派生类对象指针取代基类对象指针
派生类对象引用取代基类对象引用

int main() {
    Student s("jack", Date(1980, 8, 8), true, "970101", 10);
    SchoolMember  p = s; //slice
    Student s2 = p; //error

    Student  *pD = new Student("jack", Date(1980, 8, 8), true, "970101", 10);
    SchoolMember *pB = pD;  //correct 基类指针指向派生类对象
    SchoolMember *pB2 = new Student("jack", Date(1980, 8, 8), true, "970101", 10);
    pB = new Teacher("jack", Date(1980, 8, 8), true, 4, 1500); //多态性在这里体现

    Student &rd = s;
    SchoolMember &rp = p;
    Student &rd2 = p; //error
    SchoolMember &rp2 = s; // ok
}

指针类型的强制转换

int main() {
    SchoolMember  *pB = new Student;
    Student *pD2 = pB; //error
    Student *pD3 = dynamic_cast<Student *>(pB);

    SchoolMember *pB = new Teacher;
    Student *pD = dynamic_cast<Student *>(pB); //转换失败，得到空指针
    Student *pD2 = static_cast<Student *>(pB); //static_cast转换时不做检查，访问pD2的后果不堪设想
    pD2->enroll(); //不可设想的后果
}

派生类的访问权限

private成员：只在定义它的类的成员函数中可以访问，在派生类的成员函数中不可访问。基类的私有成员被派生类继承，但是不能被派生类访问
protected成员：在本类及派生类中能访问的成员。派生类可以访问继承的保护成员，但是不能访问一个基类对象的保护成员

class Base {
public:
    int a;
protected:
    int b;
private:
    int c;
};
class Derived :public Base {
    void f() {
        cout << a << b << c;//访问c是错误的
    }
};
void f(Derived &d) {
    cout << d.a<< d.b<< d.c; //访问b,c都是错的
}

class Base {
protected:
    int x;
};
class Derived  : public Base{
public:
    void f( ) {
        Base b;
        cout << b.x; //访问基类对象的保护成员，错误
        cout << x;  //发访问继承的基类保护成员，正确
    }
};

使用using声明改变基类成员权限

class Person {
public:
    string get_name();
    Date get_date();
    bool get_gender();
};
class Student : public Person {
private:
    using Person::get_name;
};

派生类的成员名字如果与基类相同，将隐藏基类成员

class Person {
public:
    void set(string name);
    void set(bool gender);
};
class Student : public Person{
public:
    void set(int department); // hide base member functions
};
void f(Student &s) {
    s.set("12345");
    s.set( true );
    s.Person::set("12345"); //ok
    s.Person::set(true); //ok
}

保护继承和私有继承

class Derived : private Base {
//…
};

class Derived: protected Base {
//…
};

class Base {
public: int a;
protected: int b;
private: int c;
};
class Derived : private Base{
    void f() {
        cout << a << b << c;
    }
};
int main() {
    Derived d;
    cout << d.a << d.b << d.c;
}

多继承

在C++中允许一个派生类有多个基类，这种继承叫做多继承。相对的只有一个基类的继承被称为单继承。多继承表达的是“派生类既是一种基类A，又是一种基类B”的逻辑关系。

比如Assistent类继承了Student和Teacher两个类：

class Assistant : public Student, public Teacher {
public:
  Assistant(string n, string i, string l)
    :  Teacher(n, l), Student(n, i) {
    cout << "a";
  }
  void print() const {
    cout<< name << id << level; // ambiguous error
    cout<< Student::name << Teacher::name << id << level;
  }
};

注意：不同基类中的同名的成员会在派生类中同时存在。比如这里的name,id,level等。

多继承时对象的复制：派生类对象的指针可以赋给任何一个基类类型的指针

Assistant  assist("jack", "12456", "assistant");
Student  s = assist; //OK, slice
Teacher  t = assist; //OK, slice
Student *ps = &assist; //OK
Teacher *pt= &assist; //OK
ps->print();
pt->print();
Person *p = &assist; //ambigius
Person *p = (Student *)&assist;
Person *p = (Teacher *)&assist;
p->print();

虚基类

class Person {
};
class Student : virtual public Person {
};
class Teacher : virtual public Person {
};
class Assistant : public Student, public Teacher {
};

虚基类Person在派生类Assistant的对象中只有一份

class Person {
    string name;
public:
    Person(string n):name(n){ cout << "P"; }
};
class Student : virtual public Person {
    string id;
public:
    Student(string n, string i):id(i), Person(n){ cout<<"S";}
};
class Teacher : virtual public Person {
    string level;
public:
    Teacher(string n, string l):level(l), Person(n){cout<<"T";}
};
class Assistant : public Student, public Teacher {
public:
    Assistant(string n, string i, string l)
    : Student(n, i), Teacher(n, l), Person(n) {cout<<"A";}
};

完整例子：

#include <iostream>
#include <string>
using namespace std;

struct Date {
    int year;
    int month;
    int day;
public:
    Date(int y, int m, int d) {
        year = y;
        month = m;
        day = d;
    }
    void print() {
        cout << year<<"-" <<month<<"-" <<day;
    }
};

const bool MALE = false;
const bool FEMALE = true;

enum {SCHOOLMEMBER, TEACHER, STUDENT, GRADUATESTUDENT};

class SchoolMember {
    string name;
    Date birth;
    bool gender;
public:
    int type;

    SchoolMember(string n, Date b, bool g)
     : birth(b) {
        name = n;
        gender = g;
        type = SCHOOLMEMBER;
    }
    string get_name() {
        return name;
    }
    Date get_birth() {
        return birth;
    }
    bool get_gender() {
        return gender;
    }
    virtual void print() {
        cout << name;
        birth.print();
        cout << (gender==MALE?"MALE":"FEMALE") <<endl;
    }
    virtual ~SchoolMember() {
        cout << "destruct SchoolMember " << get_name() << endl;
    }
};

struct Course {
    string name;
    int credit;
};

enum { MATHS = 8, PHYSICS =9, CS = 10};

class Student : virtual public SchoolMember {
    string id;
    int department;
    int credit;
public:
    Student(string n, Date b, bool g, string i, int d)
    : SchoolMember(n,b,g)
    {
        id = i;
        department = d;
        credit = 0;
        type = STUDENT;
    }
    void take_course(Course *c){
        credit += c->credit;
    }
    bool can_graduate() {
        return credit >= 160;
    }
    string get_id() {
        return id;
    }
    int get_credit() {
        return credit;
    }
    int get_department() {
        return department;
    }

    virtual void print() {
        cout << get_name();
        get_birth().print();
        cout << (get_gender()==MALE?"MALE":"FEMALE") << id << credit <<department << endl;
    }
    ~Student() {
        cout << "destruct Student:" << get_name() << endl;
    }

};

class Graduate;

enum {PROFESSOR =4, VICEPROFESSOR = 3, ASSISTANT = 1};
class Teacher :virtual public SchoolMember {
    int title;
    int salary;
    Graduate* supervised[10];
    int num_supervised;
public:
    Teacher(string n, Date b, bool g, int t, int s)
    : SchoolMember(n, b, g) {
        title = t;
        salary = s;
        num_supervised = 0;
        type = TEACHER;
    }
    void add_supervised(Graduate *g) {
        supervised[num_supervised] = g;
        num_supervised++;
    }
    virtual void print() {
        cout << get_name();
        get_birth().print();
        cout << (get_gender()==MALE?"MALE":"FEMALE") << title << salary << endl;
    }
    ~Teacher() {
        cout << "destruct Teacher:" << get_name() << endl;
    }

};

class Graduate :public Student {
    Teacher *tutor;
public:
    Graduate(string n, Date b, bool g, string i, int d, Teacher *t)
    : Student(n, b, g, i, d), SchoolMember(n, b,g)
    {
        tutor = t;
        type = GRADUATESTUDENT;
    }
    void set_tutor(Teacher *t){
        tutor = t;
    }
    virtual void print() {
        cout << get_name();
        get_birth().print();
        cout << (get_gender()==MALE?"MALE":"FEMALE") << get_id() << get_credit()<< get_department() << tutor->get_name() << endl;
    }
    ~Graduate() {
        cout << "destruct Graduate:" << get_name() << endl;
    }

};

class Assistant : public Student, public Teacher {
public:
    Assistant(string n, Date b, bool g, string i, int d, int t, int s)
    :Student(n, b, g, i, d), Teacher(n, b, g, t, s),
    SchoolMember(n, b, g) {

    }
    void print() {
    }
};

void printall(SchoolMember *p[], int n) {
    for(int i = 0; i < n; i++) {
        p[i]->print();
    }
}

int main() {
    SchoolMember *members[100];

    members[0] = new SchoolMember("Jack", Date(1980, 1, 1), MALE);
    members[1] = new Student("Mike", Date(1985, 5, 5), MALE, "12345", CS);
    members[2] = new Teacher("Rose", Date(1970, 3, 3), FEMALE, PROFESSOR, 2000);
    members[3] = new Graduate("Tom", Date(1982, 2, 2), MALE, "54321",
                        CS, dynamic_cast<Teacher*>(members[2]));

    printall(members, 4);
    for(int i = 0;i < 4; i++)
        delete members[i];
    Assistant a("Jeff", Date(1978, 5, 5), MALE, "11100", CS, ASSISTANT, 800);
    SchoolMember *s = &a;

}

多态

多态与虚函数

相同的指令，作用在不同类型的对象上，产生不同动作。比如：很多动物，有猫、狗、老虎等等。现在让所有的动物做一个“叫”的动作，结果…… 比如：有很多图形，有直线、方形、圆形、椭圆等等。现在让所有的图形把自己画在屏幕上，结果……

int main() {
    SchoolMember *p[100];
    p[0] = new Student(“Jack”, Date(1984, 1,1), false, “20111374”, 11);
    p[1] = new Teacher(“Marry”, Date(1969, 5,5), true, “lecturer”, 1000);
    p[2] = new Student(“David”, Date(1983, 11,11), false, “20112343”, 11);
    //...
}

现在要求写一个函数printall显示所有人的详细信息，应该怎么做？

class SchoolMember {
    enum MemberType{ P, S, T, G } type; //用来区分学生还是教师
};
void printall( SchoolMember *p[100] ) {
    for( int i = 0; i < 100; i++) {
        cout << p[i]->name << p[i]->birth << p[i]->gender;
        switch(p[i]->type) {
        case S: {
                Student *s = (Student*)(p[i]);
                cout << s->id << s->department;
            }  break;
        case T: {
                Teacher *t = (Teacher*)(p[i]);
                cout << t->level << t->salary;
            }  break;
        }
    }
}

在每个类上增加一个print函数：

class SchoolMember {
public:
    void print(){ cout << name << birth <<gender; }
};
class Student : public SchoolMember{
public:
    void print() {
        cout << name << birth << gender << ID << department;
    }
};
class Teacher : public Person {
public:
    void print() {
        cout << name << birth << gender << level << salary;
    }
};
void printall( Person* p[100] ) {
    for(int i = 0; i < 100; i++)
    switch (p[i]->type) {
        case S:
        {
            Student *s = (Student*)(p[i]);
            s->print();
        } break;
        case T:
        {
            Teacher *t = (Teacher*)(p[i]);
            t->print();
        } break;
    }
}

仍不够简洁，理想的做法是：

void printall(Person *p[100]) {
    for ( int i =0; i < 100; i++)
        p[i]->print( );
}

但是，这时输出是

Jack 1984-1-1 false
Marry 1969-5-5 true
David 1983-3-3 false
……

虚函数

class Person {
protected:
    string name;
    Date birth;
    bool gender;
public:
    virtual void print( ) { //虚函数
        cout << name << birth << gender;
    }
};

在派生类中覆盖（override）虚函数

class Student : public Person {
protected:
    string ID;
    int department;
public:
    virtual void print( ) {  // override Base::print
        cout << name << birth <<gender;
        cout << ID << department;
    }
};
class Teacher : public Person{
protected:
    int level;
    double salary;
public:
    virtual void print() { //override Base::print
        cout << name << birth << gender;
        cout << level << salary;
    }
};
void printall(Person *p[100]) {
    for ( int i =0; i < 100; i++)
        p[i]->print( );
}

这时候的结果是：

Jack 1984-1-1 false 20111374 11
Marry 1969-5-5 true lecturer 1000
David 1983-11-11 false 2012343 11
……

调用被覆盖（override）的函数

class Teacher : public Person {
protected:
    string level;
    double salary;
public:
    virtual void print() {
        Person::print();
        cout << level <<  salary;
    }
};

多态的限制

int main() {
    Person p(“Jack”, Date(1984,1,1), false);
    p.print(); // 这里调用Person::print
    Student s(“David”, Date(1983,11,11), false, 403315,10);
    s.print();  // 这里调用 Student::print
    Person p2 = s;
    p2.print(); // 这里调用 Person::print
    Person *p3 = &s;
    p3->print();  // 这里调用 Student::print 这里才是多态
    Person &p4 = s;
    p4.print();
}

多态只能通过指针或者引用来实现。
非成员函数、类的构造函数、静态成员函数不能是虚函数
virtual写在成员函数的声明中，而不是定义中
一般情况下，派生类要override基类的虚函数，要求函数声明形式完全一样。
例外：基类的虚函数返回基类的指针或者引用，那么派生类override它，可以返回此派生类的指针或引用
```
class Base { virtual Base*f(); };
class Derived:public Base { virtual Derived* f(); };
```
如果派生类没有override基类的虚函数，那么派生类会继承基类的虚函数

更多例子：

class Shape {
public:
    virtual void draw();
};
class Rectangle : public Shape{
public:
    virtual void draw();
};
class Circle :public Shape {
public:
    virtual void draw();
};
int main() {
    Rectangle r;
    Circle c;
    Shape &s = r;
    s.draw();
    Shape &t = c;
    t.draw();
}

问题：

class Shape {
public:
    //no virtual function in base
};
class Rectangle : public Shape{
public:
    virtual void draw() { /*....*/ }
};
class Circle :public Shape {
public:
    virtual void draw() { /*....*/ }
};
void f(Shape* s) {
    s->draw();
}
int main() {
    Shape *s = new Rectangle;
    f( s );
}

基类中没有虚函数draw，则s->draw()出错。

问题：

class Shape {
public:
    virtual void draw() {/*....*/}
};
class Rectangle : public Shape{
public:
    virtual void draw(int a){/*....*/}
};
class Circle :public Shape {
public:
    virtual void draw() {/*....*/}
};
void f(Shape* s) {
    s->draw();
}
int main() {
    Shape *s = new Rectangle;
    f( s );
    Shape *c = new Circle;
    f( c );
}

Rectangle中定义的draw与基类中的虚函数draw不同，则基类中的draw没有被override。

一个函数调用如果在编译时候确定调用哪个函数，我们称它为静态绑定；如果编译时候不能确定，到运行时才能确定，那么我们称它为动态绑定。

void f(Person *p) {
    p->print( ); //static or dynamic?
}

一般虚函数使用动态绑定，普通函数使用静态绑定。动态绑定比静态绑定速度慢。

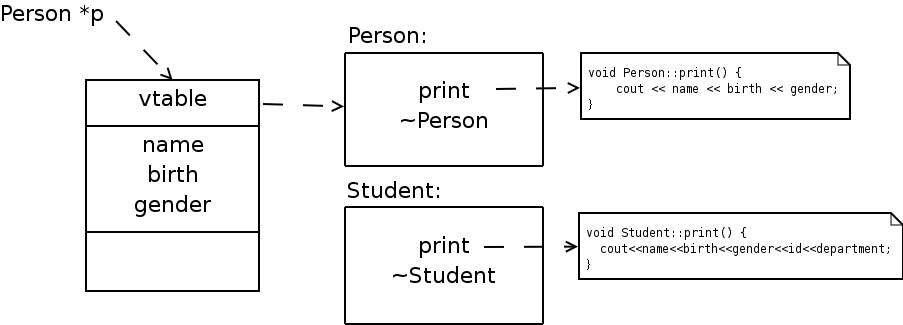

虚表（virtual table）——C++实现多态的方法

虚析构函数

int main() {
    Person *p = new Student(...);
    delete p;  // which destructor is called?
}

虚析构函数作用：通过基类指针来释放派生类对象时，能够保证调用正确的析构函数

class Person {
public:
    virtual ~Person() { };
};

更多例子：动物的叫的例子

class Animal {
public:
    virtual void shout() { cout << "animal cannot shout"; }
};
class Dog : public Animal {
public:
    void shout() { cout << "Dog barking!"; }
};
class Ox : public Animal {
public:
    void shout() { cout << "Ox Moo"; }
};

class Fish: public Animal {
//shout not overridden here, Animal::shout is inherited
};
void f(Animal *a) {
     a->shout();
}
int main () {
    int i; cin >> i;
    Animal *a;
    switch(i) {
    case 1: a = new Dog; break;
    case 2: a = new Ox; break;
    case 3: a = new Fish; break;
    }
    f(a);
    delete a;
}

纯虚函数和抽象类

问题：某些基类的虚函数没有实现的意义

class Animal {
public:
    virtual void shout() { cout << "animal cannot shout"; }
};

纯虚函数(pure virtual function)：函数体可以省略的虚函数

class Animal {
public:
    virtual void shout() = 0;  //Pure virtual function
};

抽象类(abstract class)：含有纯虚函数的类称为抽象类。类中只要有一个函数是纯虚函数，这个类就是抽象类。抽象类不能实例化，即不能定义对象。

void f() {
    Animal a; // error
    Animal *pa1 = new Animal; // error
    Animal *pa2 = new Ox;
    pa2->shout();
    Animal *pa3 = new Fish;
    pa3->shout();
}

与抽象类相对的是实体类（concrete class），即不包含纯虚函数的类

抽象类虽然不能够实例化，但可以派生。在派生类中，纯虚函数会被继承。如果在派生类中，给出了所有纯虚函数的实现，那么派生类将成为实体类

class Shape { //abstract class
public:
    virtual void draw() =0;
    virtual double getarea() = 0;
};
class Rectangle :public Shape {
public:
    virtual void draw() {/*...*/}
    virtual double getarea() { /*...*/}
};
class Circle : public Shape{
public:
    virtual void draw() { /*...*/}
};

Rectangle为实体类，Circle为抽象类

纯虚函数一般省略函数体，但也可以有函数体

class Person {
public:
    virtual void print() = 0 {
        cout << name << gender << birth;
    }
};

带函数体的纯虚函数可以在派生类中被调用

class Student : public Person{
public:
    virtual void print() {
        Person::print();  //base pure virtual function is called
        cout << id << department;
    }
};

接口类：只有纯虚函数成员的类。 IUnknown:微软所有COM（Component Object Model）对象的基类

class IUnknown {
public:
    virtual long QueryInterface(
                REFIID riid, void **ppvObject) = 0;
    virtual unsigned long AddRef( void) = 0;
    virtual unsigned long Release( void) = 0;
};

运行时类型信息

问题：某些情况下，光靠多态性不够用，必须得到对象准确的类型信息

void f(Shape *s) {
    // what on earth is s?
}

两种RTTI机制：dynamic_cast和typeid。先决条件：类中必须有虚函数。在使用RTTI之前，需要先审查在面向对象设计上是否出了问题。

dynamic_cast
void f(Person *p) {
    if( dynamic_cast<Student *>(p) ) {
       cout<<"p is a Student object or its derivation";
       Student *s = dynamic_cast<Student *>(p);
    } else if( dynamic_cast<Teacher *>(p) ) {
       cout<<"p is a Teacher object or its derivation";
       Teacher * t = dynamic_cast<Teacher *>(p);
    }
}

typeid能够确定表达式的确切类型，使用时要包含<typeinfo>

void f( Shape *s) {
    cout << typeid(double).name();
    cout << typeid(5280L).name();
    cout << typeid(s).name(); //runtime class name
    cout << typeid(*s).name(); //static or dynamic?
    Shape &r = *s;
    cout << typeid(r).name();
    Shape  a;
    cout << typeid(a).name();
}

typeid返回一个typeinfo类对象的引用

class type_info{
public:
    virtual ~type_info();
    const char *name() const;
    bool operator==(const type_info&) const;
    bool operator!=(const type_info&) const;
    bool before(const type_info&) const;
private:
    type_info( const type_info&);
    type_info& operator=(const type_info&);
};

用法：

void f(Shape *s) {
    if( typeid( *s ) == typeid( Circle ) )
        cout << "s is a Circle";
}

面向对象设计方法

确定程序中需要的类及每个类需要的操作
将不同类的共同的操作提取到基类
通过基类接口来操纵各种不同的对象
可以通过增加新的派生类来扩展系统

例子：

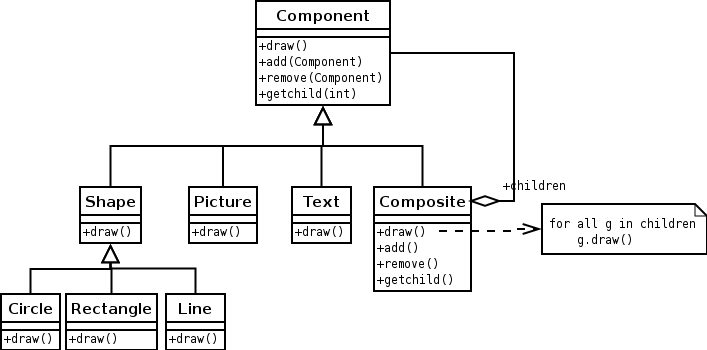

复合文档（composite模式）：包含文字、图形的文档

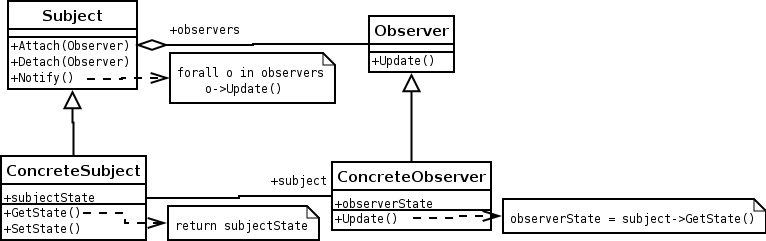

一组数据，有多种表现形式（observer模式）（比如表格、柱状图、柄图）

交互图

设计模式：

前人成功经验总结的可以重复利用的面向对象软件设计的范例。用处：套用前人范式以面向对象思想解决问题，设计出健壮、可复用、支持变化的软件。参考书：《设计模式——可复用面向对象软件的基础》——GoF（Erich Gamma等四人）

继承
